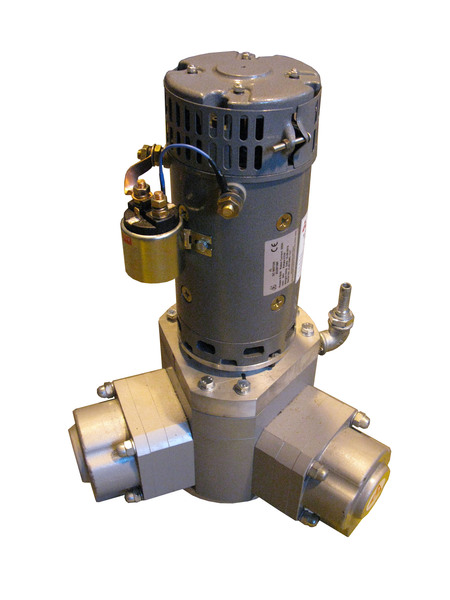

Vacuum piston pump TPP-3 with DC engine 24V

Vacuum piston pump TPP-3 with DC engine 24V
Piston vacuum pump with high power DC motor is used to create a
under pressure required for sucking water and flooding the impeller
and the internal pump systems primarily in large pumping units, which
have large dimensions of suction hose diameter.

Engine power output [Ps]:	4 kW
Rated speed [n]:	1800 RPM
Max. under-pressure [MPa]:	0,092
Supply type:	24
Computational output n=1800 RPM:	528 dm3/min
Number of modules:	3 pcs.
Amount of gear oil [dm3]:	0,25
Weight:	35 kg

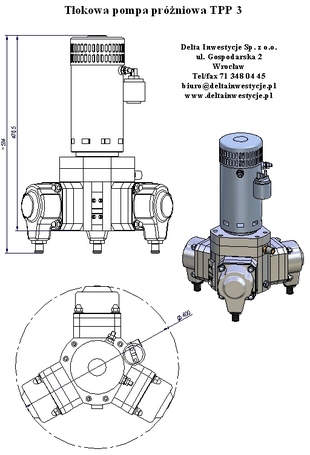

Dimension:	400 x 400 x 535 mm ( lenght x width x height)

The vacuum piston pump, TPP, consists of the three piston pump modules and the gearbox wherein there is located the drive shaft complete with an eccentric. The driving motion is transferred from the electric motor, via the clutch. An eccentric turn results, via the pusher, in cyclic reciprocating movements of the piston, thus generating under-pressure in the suction system of the vacuum pump. The pump pistons are sealed with special-purpose flexible rubber gaskets, while the piston rods are sealed with O-rings in the guides. The piston rods and the antifriction bearings are lubricated with oil from the gearbox, wherein an oil level gauge is located also.
