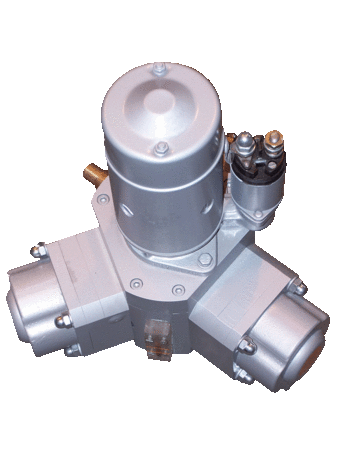

Vacuum piston pump TPP-3 12V/24V
For generation of under-pressure in the suction system of the
fire-engine pump and the fire-engine, necessary for sucking water and
flooding the impeller and the fire-engine or fire-engine pump
internal space.

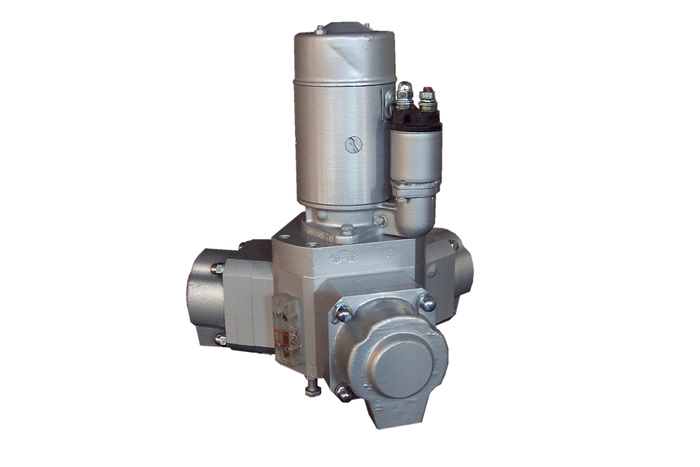

Vacuum piston pump TPP-3 12V/24V
Specifications
Engine power output [Ps]: 3 kW/2,9 kW
Rated speed [n]: 1800 RPM
Max. under-pressure [MPa]: 0,092
Supply type: 12V/24V
Max. speed: 2000 RPM
Computational output n=1800 RPM: 528 dm3/min
Number of modules: 3 pcs.
Amount of gear oil [dm3]: 0,35
Weight: 27 kg

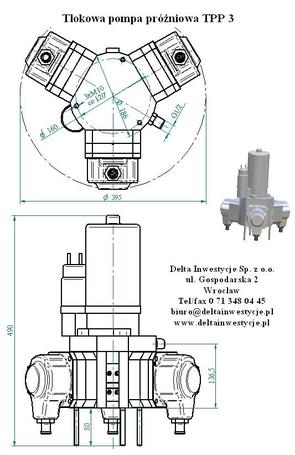

Dimension: 395 x 395 x 490 mm (lenght x width x height)
Description

The vacuum piston pump, TPP, consists of the three piston pump modules and the gearbox wherein there is located the drive shaft complete with an eccentric. The driving motion is transferred from the electric motor, via the clutch. An eccentric turn results, via the pusher,  in cyclic reciprocating movements of the piston, thus generating under-pressure in the suction system of the vacuum pump. The pump pistons are sealed with special-purpose flexible rubber gaskets, while the piston rods are sealed with O-rings in the guides. The piston rods and the antifriction bearings are lubricated with oil from the gearbox, wherein an oil level gauge is located also.
