Vacuum piston pump TPP-2 [12V/24V]

Vacuum piston pump TPP-2 12V/24V
For generation of under-pressure in the suction system of the
fire-engine pump and the fire-engine, necessary for sucking water and
flooding the impeller and the internal fire-engine space.

Engine power output [Ps]:	1,5 kW/2,9 kW
Rated speed [n]:	1950 obr/min
Max. under-pressure [MPa]:	0,09
Computational output n=1950 obr/min:	352 dm3/min
Supply type:	12V/24V
Number of modules:	2 pcs.
Amount of gear oil [dm3]:	0,30
Weight:	19 kg- TPP-2 12V / 22,5 kg- TPP-2 24V

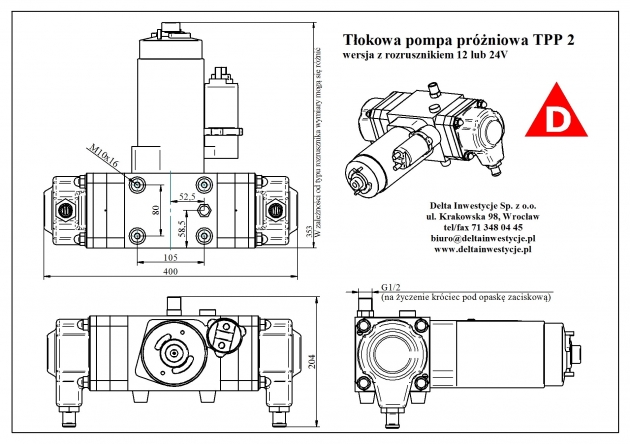

Dimension:	400x353*x205 mm (lenght x width x height)

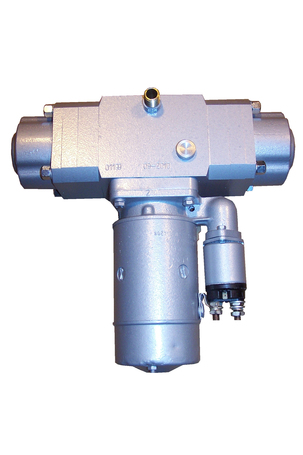

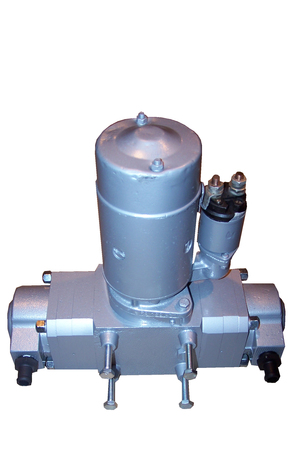

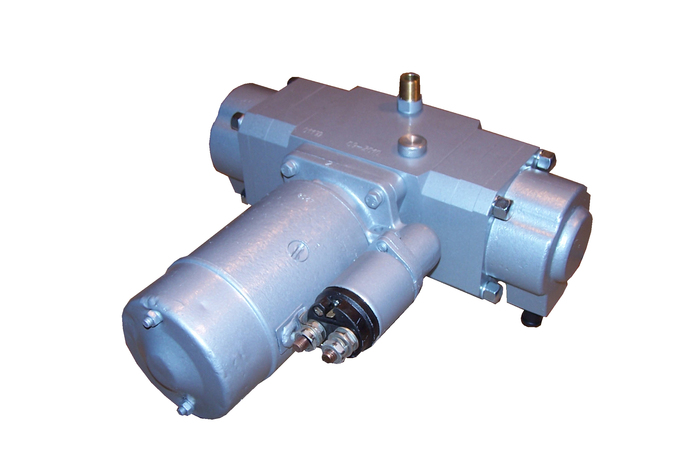

The vacuum piston pump, TPP, consists of the two piston pump modules and the gearbox wherein there is located the drive shaft complete with an eccentric. The driving motion is transferred from the electric motor, via the clutch. An eccentric turn, via the pusher, results in piston reciprocating movements, thus generating under-pressure in the suction system of the vacuum pump. The pump pistons are sealed with special-purpose flexible rubber gaskets, while the piston rods are sealed with O-rings in the guides. The piston rods and the antifriction bearings are lubricated with oil from the gearbox, wherein an oil level gauge is located also.

*the dimension is dependent on the drive type, 12V or 24V.
